30mm Circular Plane

1. Introduction

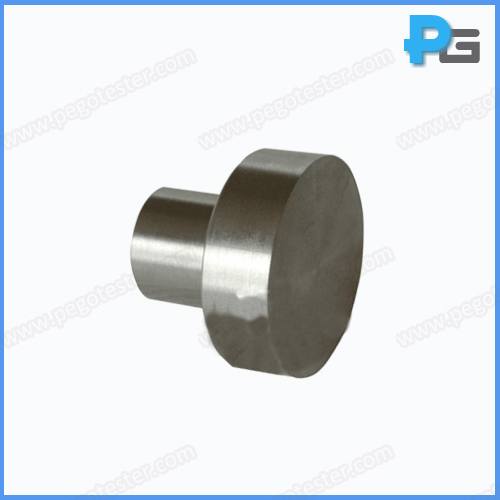

The 30mm circular plane is designed to meet the test requirements of IEC60950 clause 4.2.4 and IEC60601-1 clause 15.3.2. It’s made of stainless steel. The circular plane has a 30mm diameter surface and with M6 connector, so that to work with a foce gauge to apply a 250N±10N steady force to external enclosure of equipment having a mass of not more than 18KG.


2. Specification

Diameter of the plane surface

φ30mm

Connector

M6 thread

Material

Stainless steel

Force applied

250N±10N (by working with a force gauge)



Description
The 30mm circular plane is designed to meet the test requirements of IEC60950 clause 4.2.4 and IEC60601-1 clause 15.3.2.
Model
PG-CP30
