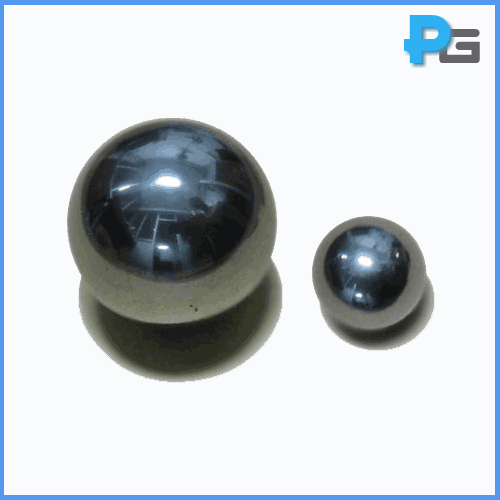

Test Probe 1 for IP1X Testing ( 500g steel test sphere )

1. Introduction

Test probe 1 (500g test sphere) is designed according to IEC61032 figure 5, meet the requirement of IEC60529-IP. The diameter of the sphere is 50mm+0.05. The test probe 1 is an IP code probe to verify the grade IP10, which means the protection against solid foreign objects of Φ 50mm or greater.

2. Specification

1) Diameter of sphere: 50mm+0.05

2) Weight of the sphere:500g

3) Material: steel
