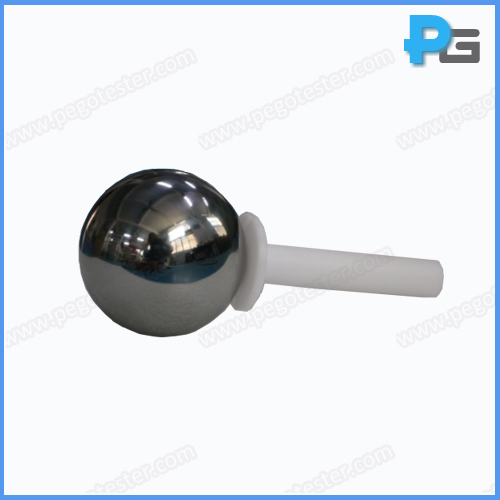

φ75mm Test Sphere with Handle

1. Introduction

φ75mm test sphere is designed to meet the test requirements of IEC60335-2-24 clause 21.102 to verify the lamps in household appliance protect against mechanical shocks. The sphere without appreciable force in a attempt to touch the lamp with the lamp cover in place, the sphere shall not touch the lamp.


2. Specification

Diameter of the sphere

φ75mm

Length of handle

100mm

Material

insulating material (handle and baffle), metal (test sphere)


Description
φ75mm test sphere is designed to meet the test requirements of IEC60335-2-24 clause 21.102 to verify the lamps in household appliance protect against mechanical shocks.
Model
PG-TS75
