AC/DC Withstand Voltage Tester (10KV)
AC/DC Withstand Voltage Tester (10KV)
- Detail
- Parameters

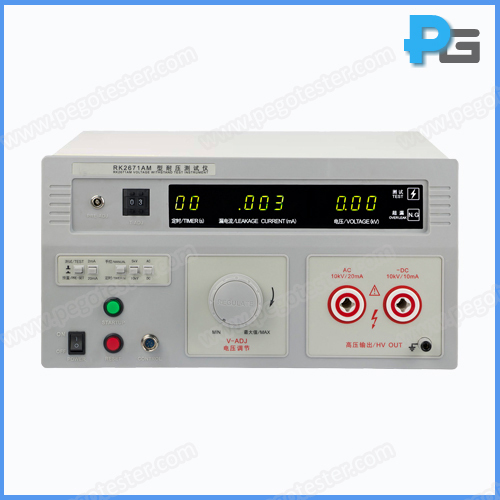

AC/DC Withstand Voltage Tester
1. Introduction
Withstand voltage tester is applied to the fields of household appliance, motor, lighting appliance, compressor and etc. to test the break voltage, leakage current and other electronic safety performance. The tester meets the requirements of IEC60335,IEC60598 and IEC60950.
2. Parameter
Model | RK2671 | RK2671BM | RK2671CM | ||
Output voltage | AC: 0~5/10KV, DC:0~5/10KV | ||||
Leakage current | AC: 0-2/20mA; DC:0-2/10mA | AC: 0-2/20/50mA; DC:0-2/20mA | AC: 0-2/20/100mA; DC:0-2/20mA | ||
Output power | 200VA | 500VA | 1000VA | ||
Wave sharp | 50Hz/60Hz sine wave | ||||
Accuracy of voltage | ±5% | ||||
Accuracy of current | ±5% | ||||
Time setting | 1-99s±1% | ||||
Power consumption | ≤30W | ||||
Power | AC 220V±10% 50Hz/60Hz | ||||
Description
AC/DC withstand voltage tester, high voltage tester, hipot tester, withstand voltage tester
Model
RK2671
