Maximum and Minimum Withdrawal Force Test Gauge AS/NZS3112

1. Introduction

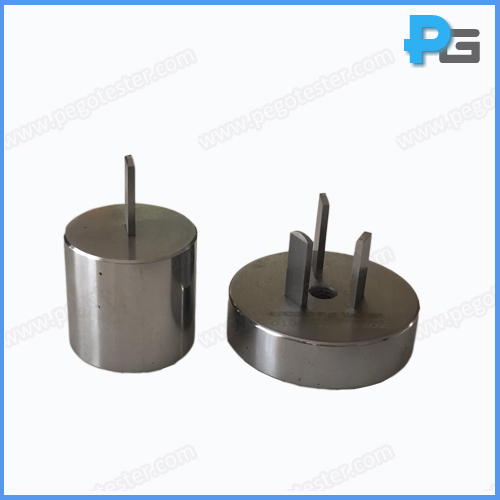

The withdrawal force test gauges are designed according AS/NZS3112 Figure 2.1(a), and meet the requirement of clause 3.14.8.3 and clause 3.14.8.2, includes three-pins maximum withdrawal Force Test Plug (10A/250V) to check the maximum force required when the plug is pulled out of the socket, and single-pin minimum withdrawal force test pin to check the minimum force required for a single- pin plug to be pulled out of the socket. The gauges are made of hardened steel.


2. Parameter

Rated up to and includes (test plug)

10A/250V

Force Applied to test plug

20~50N

Size of test pin

6.2mm*1.58mm

Force applied to test pin

1.5N

Material

Hardened steel


Description
The withdrawal force test gauges are designed according AS/NZS3112 Figure 2.1(a), and meet the requirement of clause 3.14.8.3 and clause 3.14.8.2
Model
PG- AS/NZS3112 (figure 2.1)
