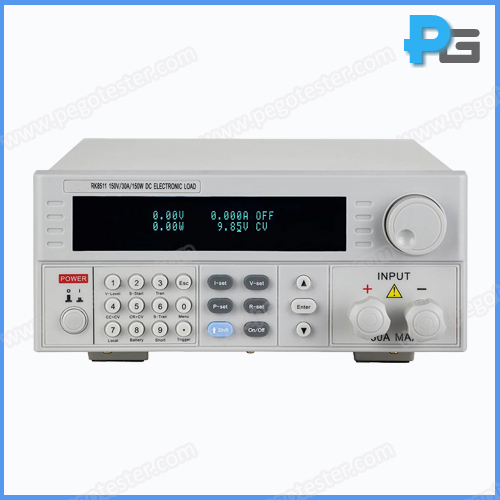

DC Electronic Load
1. Introduction
The new generation DC electronic load has the features of high speed and accuracy, the resolution can reach 0.1mV, 0.01mA. DC electronic load is mainly used in production line, like charger, battery, switch, cable).
2. Specification
Model | RK8511 | RK8512 | |||||
Input | Voltage | 0-150V | 0-150V | ||||
Current | 0-30A | 0-60A | |||||
Power | 150W | 300W | |||||
CV mode | Range | 0-20V | 0-150V | 0-20V | 0-150V | ||
Resolution | 1mV | 10mV | 1mV | 10mV | |||
Accuracy | 0.03±0.05FS | ||||||
CC mode | Range | 0-3A | 0-30A | 0-6A | 0-60A | ||
Resolution | 0.1mA | 1mA | 0.1mA | 1mA | |||
Accuracy | 0.03±0.05FS | ||||||
CW mode | Range | 0-150W | 0-300W | ||||
Resolution | 10mW | ||||||
Accuracy | 0.2%±0.2FS | ||||||
CR mode | Range | 0-10K | |||||
Resolution | 0.01Ω | ||||||
Accuracy | 0.2%±0.2FS | ||||||
Dimension | 380*267*110mm | ||||||
Weight | 3.5KG | ||||||
Description
DC electronic load, electronic load
Model
RK8511
