Name

Model

Description

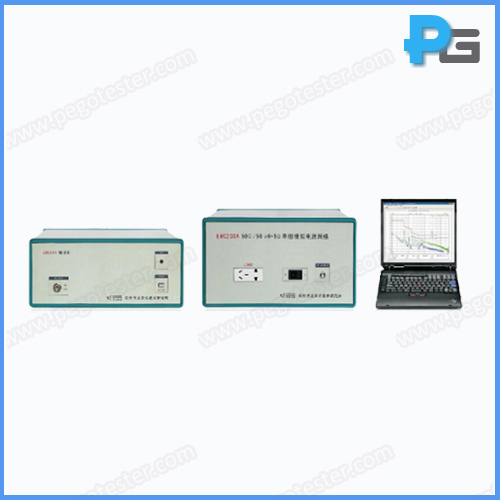

EMI Conducted Interference Test System (Includes Artificial mains network (LISN), receiver, software)

EMC500

Test range: 9K~300MHz. Among them, 30M~300MHz is radiation disturbance test for luminaire and household appliance.

Isolation Transformer

DAG

500W-2 pieces, 1000W-1 pieces

Attenuator

CY371-2-4-20

20dB

CDN

CDN-M2

Equip with EMC500 to test radiation disturbance

Attenuator

CY371-2-4-20

6dB

Frequency sweep range

9KHz~300MHz

Peak value, quasi-peak value, average value level range

20dBμV~120dBμV

Scanning bandwidth

9kHz~150kHz: 200Hz

150kHz~30MHz: 9kHz

30MHz~300MHz: 120kHz

Scanning steps

9kHz~150kHz:100Hz, 200Hz, 400Hz (optional)

150kHz~30MHz: 5kHz, 10kHz, 20kHz (optional)

30MHz~300MHz: 50kHz, 100kHz, 200kHz (optional)

Test time

9kHz~150kHz

50~500ms (peak, settable)

4000~15000ms (quasi-peak, settable)

150kHz~30MHz

5~500ms (average/peak, settable)

2000~15000ms (quasi-peak, settable)

30MHz~300MHz

2~500ms (average/peak, settable)

1000~8000ms (quasi-peak, settable)

Total uncertainty

±3dB

Input impedance

50Ω

Input signal (max)

2V, protect at 5V

Software

Built-in GB17743, FCC, EN55015, GB4343 standards, and support user-defined.

Working power

220V/50Hz±10%
