EN30-1-1 Standard Aluminum Pans for Testing on Gas Burners
1. Introduction

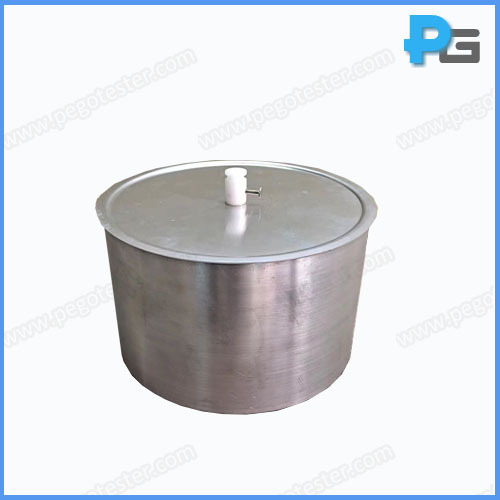

The Standard aluminum pans are designed according to EN30-1-1 Annex C.1 and table C.1. The test pans are made of commercial quality aluminum with density of 2700kg/m2, and use a tightening joint to secure the mercury thermometer with a through hole φ6.5mm.
2. Table C.1-Characteristics of pans necessary for testing on gas burners
Dimension | Unit | Pan Designation | Tolerances | ||||||||||||||
6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | |||
A | mm | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 220 | 240 | 260 | 280 | 300 | 320 | 340 | ±1% |
H | mm | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 | ±1% |
Cmin. | mm | 1.2 | 1.4 | 1.4 | 1.6 | 1.6 | 1.8 | 2 | 2 | 2 | 2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
Dmin. | mm | 1.1 | 1.3 | 1.3 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | |
E | mm | 1 | 1.5 | 1.5 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 4 | +0.5mm 0 |
Area of base | cm2 | 28.3 | 50.3 | 78.5 | 113 | 154 | 201 | 254 | 314 | 380 | 452 | 531 | 615 | 707 | 804 | 907 | |
Mass | g | 42.9 | 82.4 | 120 | 220 | 270 | 340 | 440 | 540 | 680 | 800 | 965 | 1130 | 1350 | 1520 | 1800 | ±5% |
Mass pf lida | g | 58 | 70 | 86 | 105 | 125 | 149 | 177 | 208 | 290 | 323 | 360 | 402 | ||||
a Mass without handles calculated for lids in aluminium (relative density 2700kg/m3) and given for guidance.
| |||||||||||||||||
