GB1003 3-Phases Plug and Socket-Outlet Gauges

1. Introduction

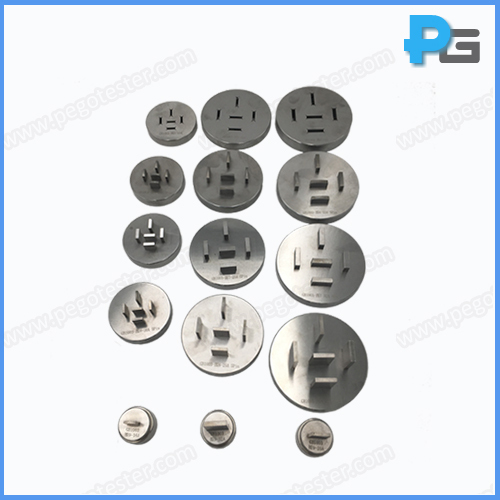

The 3-phase plug and socket-outlet test Gauges are designed according to GB1003-2016 figure 5, figure 6, figure 7, figure 8 and figure 9. They are applicable to verify the three-phase plugs and three-phase fixed or mobile socket-outlets for household with an AC frequency of 50 Hz, rated voltage of 440 V, rated current not exceeding 32 A.

2. Parameter

No.

Standard/figure number

Gauge name

Qty

Test Purpose

1

GB/T1003-2016, figure 5

3-Phases 5-Wires Plug Gauges (16A, 25A, 32A)

3

The plug should be able to insert into the gauge


Note: The insertion force should not be greater than the maximum withdrawal force specified in GB/T2099.1.

2

GB/T1003-2016, figure 6

3-Phases 5-Wires Socket-Outlet Go Gauges (16A, 25A, 32A)

3

The go gauge shall be able to insert into the jacks of the 3-phases and 5 wires socket-outlets. For 3-phases 4-wires socket-outlet, the go gauge that removes the neutral pole shown figure 6 is applied.


Note: The insertion force should not be greater than the maximum withdrawal force specified in GB/T2099.1.

3

GB/T1003-2016, figure 7

3-Phases 5-Wires Socket-Outlet Not Go Gauges (16A, 25A, 32A)

3

The not go gauge shall not be able to insert into the jacks of the 3-phases and 5 wires socket-outlets. For 3-phases 4-wires socket-outlet, the not go gauge that removes the neutral pole shown figure 7 is applied.


Note: The insertion force should not be greater than the maximum withdrawal force specified in GB/T2099.1.

4

GB/T1003-2016, figure 8

3-Phases 5-Wires Socket-Outlet Non Contact Gauge (16A, 25A, 32A)

3

The non-contact gauge shall not be able to contact the live kits of socket-outlet;   For 3-phases 4-wires socket-outlet, the non-contact gauge that removes the neutral pole shown figure 8 is applied.


Note: The insertion force should not be greater than the maximum withdrawal force specified in GB/T2099.1.

5

GB/T1003-2016, figure 9

3-Phases Socket-Outlet with Live Sleeve Contact Gauge (16A, 25A, 32A)

3

The contact gauge shall be able to contact the live kits corresponding to the three-phase socket-outlet


Note: The insertion force should not be greater than the maximum withdrawal force specified in GB/T2099.1.



Description
The 3-phase plug and socket-outlet test Gauges are designed according to GB1003-2016 figure 5, figure 6, figure 7, figure 8 and figure 9
Model
GB1003-2016
