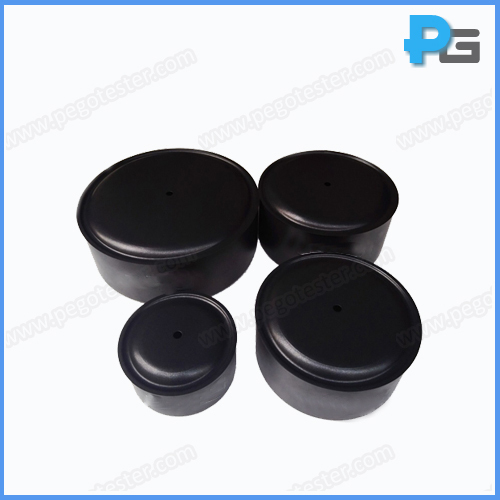

GB21456 Low Carbon Steel Test Vessels for Household Induction Cookers
1.Introduction
The vessels are designed according to GB21456-2008, it is applied to evaluate the energy efficiency and energy efficiency grades. The vessels and lids are made of Q235 low carbon steel having a maximum carbon content of 0.08%.
2. Parameter
Size of vessels | |||||
Figure No. | A/mm | B/mm | H/mm | t/mm | Volume/L |
B1 | Φ140 | Φ120 | 75 | 1.5 | 1 |
B2 | Φ200 | Φ180 | 95 | 1.5 | 3 |
B3 | Φ220 | Φ200 | 110 | 1.5 | 4 |
B4 | Φ280 | Φ260 | 105 | 2.0 | 6 |
Size of vessels | |||||
Figure No. | A/mm | B/mm | H/mm | t/mm | Volume/L |
B1 | Φ140 | Φ120 | 75 | 1.5 | 1 |
B2 | Φ200 | Φ180 | 95 | 1.5 | 3 |
B3 | Φ220 | Φ200 | 110 | 1.5 | 4 |
B4 | Φ280 | Φ260 | 105 | 2.0 | 6 |
Description
The vessels are designed according to GB21456-2008.
Model
PG-V
