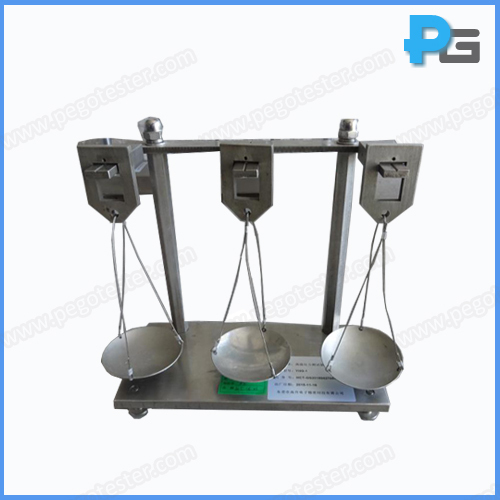

IEC60811-508 Figure 1 Indentation Device for Testing Insulation and Sheath of Cable

1. Introduction

The indentation device is designed according to IEC60811-508:2012 figure 1. The device is consisted by blade, supporting mandrel and loads. It is applied to test the indentation produced by the insulation sheath of the plug or cable under high temperature and pressure.   The device should work with oven.


2. Parameter

Test station

3

Blade thickness

0.7±0.01mm

Blade width

30mm±0.1mm

Load

1g*3, 2g*3, 5g*3, 10g*3, 20g*3, 50g*3, 100g*3, 200g*3, 500g*3, 1000g*3

Made of stainless steel

Application

≥0.4mm and ≤55mm insulation sheath

Supporting mandrel

Flat plate, 900 V slot plate, 1200 V slot plate

Weight tray

Diameter φ100mm

Material of device

SUS304

Dimension

400mm*220mm*330mm

Weight

Approximate 20kg



Description
The indentation device is designed according to IEC60811-508:2012 figure 1
Model
PG-IDD
