IEC60884-1 Test Probes
1. Introduction

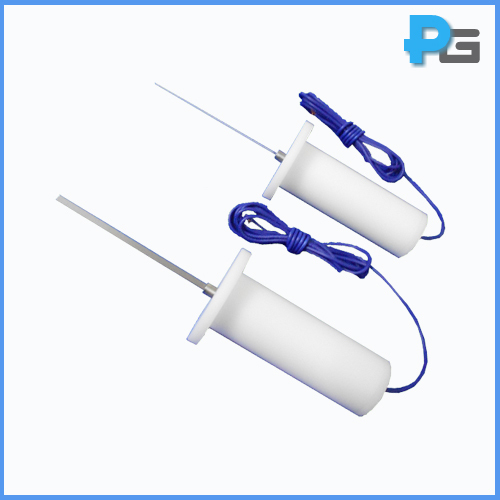

The probes are designed according to IEC60884-1 figure 9 and figure 10. 20N test probe is for checking non-accessibility live part through shutters, 1N test probe is for checking non-accessibility live part through shutters and live parts of socket-outlets with increased protection.
2. Parameter
20N Push force | Rigid steel wire | Diameter: 3+0.03mm, length: 80±0.5mm |
Tip of rigid steel wire | R0.2+0.05 | |
1N Push Force | Rigid steel wire | Diameter: 1+0.015mm, length: 80±0.5mm |
Tip of rigid steel wire | R0.05 |
Description
The probes are designed according to IEC60884-1 figure 9 and figure 10.
Model
PG-TP884
