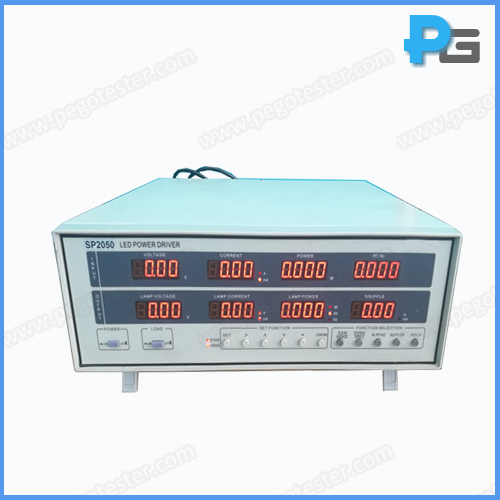

LED Power Driver Tester

1. Introduction

LED power driver tester meets the requirement of IEC62384:2006, 8 windows to display input and output characteristics, includes voltage, current, power, power factor, frequency, phase angle, total harmonic, harmonic component@ 0~50. Fast test speed, data can be gotten at 1s.

2. Parameters

● Input (AC): measuring the input voltage, current, power, power factor, frequency, total harmonic and harmonic components @ 0~50 times and crest factor.

1)Frequency range: 45Hz~5KHz

2)Voltage range: 1V~300V

3)Current range: 1mA~6A

4)Voltage and current test accuracy: ±(0.1% RD+0.1% FS+1 digit)

5)Power range: 0.1W~1800W

6)Power test accuracy:   ±(0.1% RD+0.1% FS+1 digit)

7)Power factor range: 0.000~+1.000

8)Power factor test accuracy: ±(0.1% RD+0.1% FS+1 digit)

9)Harmonic order: 0~50

● Output (DC): Measuring lamp voltage (average voltage, RMS voltage), lamp current (average current, RMS), lamp power, ripple current

1)Voltage range: 1V~300V

2)Current range: 1mA~6A

3)Voltage and current test accuracy:   ±(0.1% RD+0.1% FS+1 digit)

4)Power range: 0.1W~1800W

5)Power test accuracy:   ±(0.1% RD+0.1% FS+1 digit)

6)Ripple current range: 1mA~6A

7)Ripple current accuracy: ±(0.1% RD+0.1% FS+1 digit)
