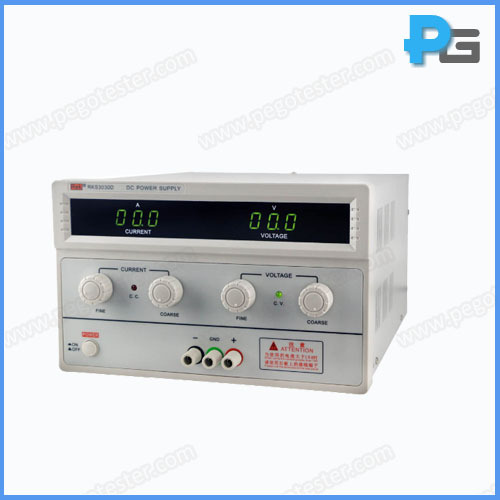

Linear DC Power Supply
1. Introduction
RPS Series DC Linear power supply is specical designed for lab, insitute and production line, the ouput voltage and current can be freely adjust between 0 and nominal value. The DC power supply has the features of good stability and ripple factor, the appearance is nice and compact.
2. Features:
1). Adopts MCU control, and with aluminium alloy shell.
2). 3 or 4 digits to display voltage, current and power
3). Adopts high quality transformer, low ripple noise, and ripple peak is lower than 30mV
4). Built in cooling fan
3. Parameters
Model | RPS3003D-2 | RPS3005D-2 | RPS6003D-2 | RPS6005D-2 | RPS3003C-2 | RPS3005C-2 | RPS6003C-2 | RPS6005C-2 |
Input Power | AC 220V±10% 50Hz | |||||||
Working conditions | Working temperature:-10℃～40℃ R.H.:﹤80% stoiage temperature:-10℃～40℃ R.H.:﹤80% | |||||||
Output mode | simplex | |||||||
Output voltage | DC 0~30V | DC 0~60V | DC 0~30V | DC 0~60V | ||||
Output current | 0~3A | 0~5A | 0~3A | 0~5A | 0~3A | 0~5A | 0~3A | 0~5A |
Display | 3 digits | 4 digits | ||||||
Pressure constant state | Voltage stability: ≤0.01%+2mV Load stability≤0.01%+2mV ripple noise≤1mVrms(valid value) | |||||||
Current constant state | Currrent stability≤0.1%+3mA load stability≤0.2%+3mA ripple noise≤2mArms（valid value） | |||||||
Display resolution | Current:10mA voltage: 100mV | Current:1mA current:10mV | ||||||
Display accuracy | ±1%±1 digit | 0.1%±1digit | ||||||
Dimension (mm） | 273mm×130mm×168mm (L*W*H) | |||||||
Weight（KG) | 3.6KG | 4.7KG | 5.1KG | 6.5KG | 3.6KG | 4.7KG | 5.1KG | 6.5KG |
