Figure number

Description

Figure 2.5

Pressure test apparatus for insulation on insulated plug pins at high temperature

Figure 2.6

Impact test apparatus for insulation on insulated plug pins at low temperature

Figure 2.9

Mounting of plug for temperature rise test

Figure 2.10

Pin clamping unit for the temperature rise test

Figure 2.8

Application for force for pin bending test

Figure 3.1

Gauge for depth of no-contact test

Figure 3.6

Device for checking the resistance to lateral strain (three pin gauge)

Figure 3.7

Device for checking the resistance to lateral strain (two-pin gauge)

Figure A1

Gauge for Three-pin 250V Max. flat-pin plugs

Figure B1

Gauge for Two-pin flat-pin 125V Max. Plugs ( with parallel pins)

Figure C1

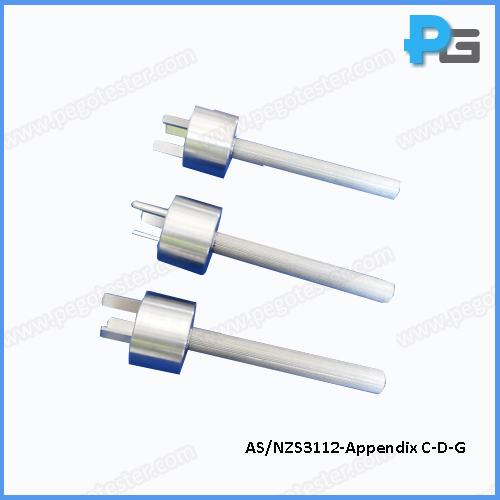

Three-pin test plug for checking three-pin flat pin 250V max. socket-outlets against the standard test finger in accordance with clauses 3.3.4 and 3.8.1

Figure D1

Three-pin test plug for checking three-pin flat pin 250V MAX. socket-outlets against incorrect insertion of plugs in accordance with clause 3.8.2

Figure E1

Dimensions of extra-low voltage flat-pin plugs

Figure F1

Gauge for flat and round pin plugs

Figure G1

Three-pin plug with flat and round pins for tests to clauses 3.3.4 and 3.8.1
