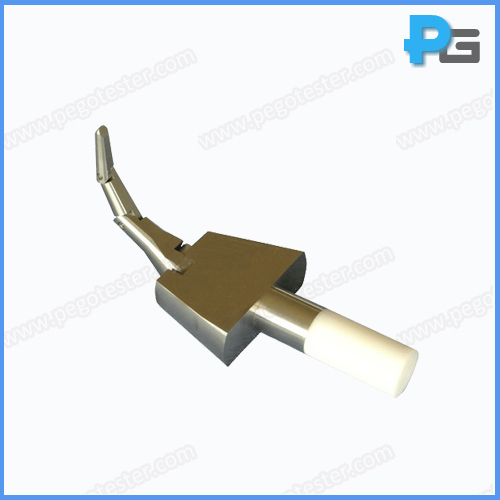

UL Articulated Finger Probe with Web Stop

1. Description:

Articulate finger probewith web stop is designed according to IEC62368 figure V.1, meet the requirements of UL507 figure 6.5 (PA100A), UL1017 figure 2, UL1062 figure 1.2, UL1310 figure 14.2, UL982 figure 7.1, UL474 figure 5.1, UL6500 figure 14, UL60065 figure 14, UL1082 figure 7.2 and UL1278 figure 8.3. Palm simulator and restricted joint movement simulates human finger movement. It’s made of nylon. Bell-Core accessory available. The handle is made of nylon. The finger is made of stainless steel.


2. Specification:

Test finger length

234mm

The bending part length

30/30/40mm

Reference standards

UL507,UL982,UL1278,UL1062,UL1310,UL474,UL60065


Description
Designed according to UL507 figure 9.2 (PA100A), UL1026 figure 6.2 (PA100A), UL1278 figure 8.3 (PA100A)
Model
PA100A
