UL Accessibility Test Probe for Uninsulated Live Part

1. Introduction

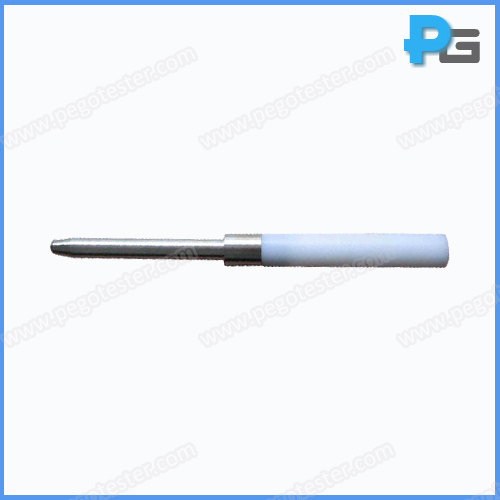

UL accessibility test probe is designed according to UL507 figure 9.1 (PA135A) and UL1278 figure 8.1 (PA130A). The handle is made by nylon and tip is made by stainless steel. The probe is to verify the accessibility to uninsulated live parts and film coated wire provided by openings.


2. Specification

Rigid finger length

101.6mm (4 inch)

Rigid finger diameter

Φ12.7mm (1/2 inch)

Head length

14.3mm (9/16 inch)

Head radius

R4.8mm (3/16 inch)

Tail diameter

191.mm (3/4 inch)

Description
Designed according to UL1278 (PA130A), UL1026 (PA130A) and UL507 (135A)
Model
PA130A
