UL Test Probe for Film Coated Wire

1. Introdution

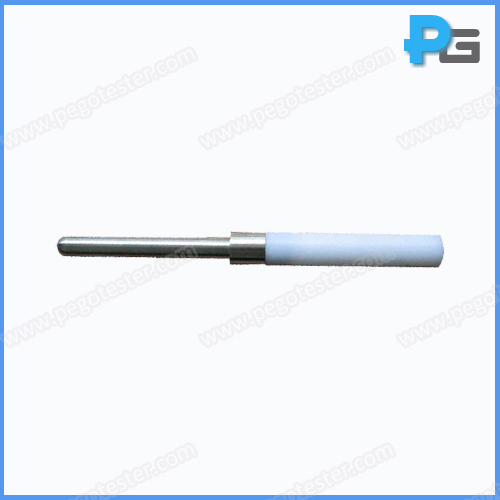

UL test probe for film coated wire designed according to UL1278 figure 8.2 (PA140A), UL398 figure 8.2 (PA170B) and UL507 (PA170D). It is to verify the accessibility to enamel coated wire. The handle is made by nylon and the tip is made by stainless steel.


2. Specification

Rigid finger length

101.6mm (4 inch)

Rigid finger diameter

Φ25.4mm (1 inch)

Head radius

R12.7mm (1/2 inch)

Tail diameter

31.5mm (1_1/4 inch)


Description
Designed according to UL1278(PA140A), UL1026 (PA140A) and UL507
Model
PA140A
