UL Test Probe for Hazardous Moving Parts

1. Introduction

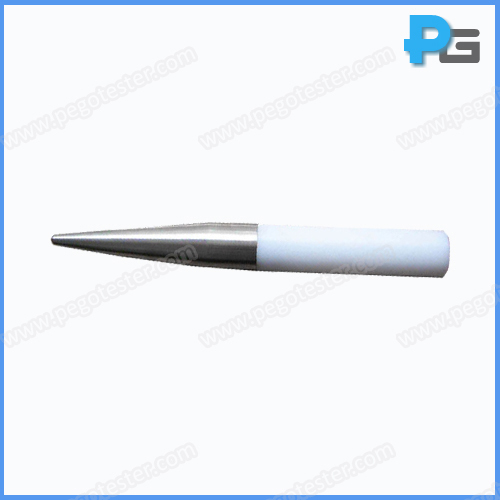

Hazardous moving part probe is conforms to the standards of UL507 figure 8.1 (PA160B), UL1278 figure 9.1 (PA160). It is applied to test the accessibility to hazardous moving parts such as access to fan blades through any opening in the guard. The handle is made of nylon, the finger is made by stainless steel.


2. Specification

Rigid finger length

88.9mm (3.5 inch)

Head length

25.4mm (1 inch)

Head radius

R3.175mm (1/8 inch)

Head former diameter

12.7mm (1/2 inch)

Tail diameter

25.4mm (1 inch)

Standard

UL507, UL1278

Description
Designed according to UL1278, UL1026 and UL507 (PA160B)
Model
PA160B
