AS/NZS 5263.1.1 Standard Test Vessels
AS/NZS 5263.1.1 Standard Test Vessels
- Detail
- Parameters
AS/NZS 5263.0 Standard Test Vessels
1. Introduction

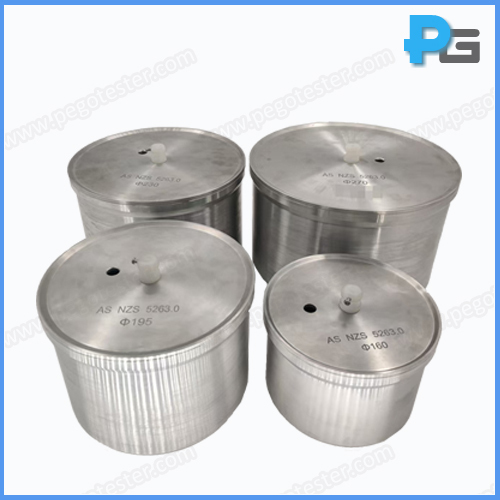

The standard test vessels are designed according to AS/NZS 5263.0 figure A12, each vessel can come with a lid, stirrer and thermocouple well, which are designed according to AN/NZS 5263.1.1 figure AA.104. The vessels, lid, stirrer and thermocouple well are made of commercial quality aluminum. The thermocouple is fixed with tightening joint.
2. Specification
Burner | Vessel | Stirrer | ||||
Gas comsumption MJ/h | Diameter mm | Height mm | Length mm | OD mm | Wall thickness mm | Aluminium flat plate mm (weld connection) |
0-6 | 160 | 110 | 250 | φ12 | 1 | L100*W50*THK2 |
>6 and ≤9 | 195 | 140 | 250 | φ12 | 1 | L100*W50*THK2 |
>9 and ≤12 | 230 | 155 | 250 | φ12 | 1 | L100*W50*THK2 |
>12 and ≤17 | 270 | 160 | 250 | φ12 | 1 | L100*W50*THK2 |
>17 and ≤24 | 315 | 190 | 250 | φ12 | 1 | L100*W50*THK2 |
Description
The standard test vessels are designed according to AS/NZS 5263.0 figure A12, each vessel can come with a lid, stirrer and thermocouple well, which are designed according to AN/NZS 5263.1.1 figure AA.104
Model
PG-AVAS
