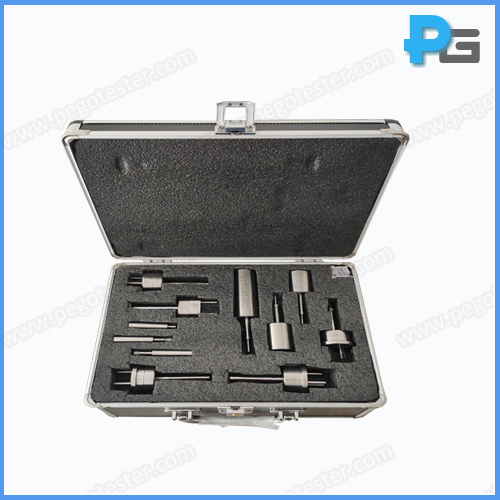

TIS166-2549 plug and socket-outlet gauges
1. Introduction
The gauges are strictly designed according to TIS166-2549, in figure A.1 to A.5 are used to check dimensions of the socket-outlet and gauges in figure A.6 to A.7 are used to check pulling force, in case of socket-outlet the gauge in fig.8 to fig.10 are used additionally.
2. Specification
| No. | Standard and figure number | Description | Quantity |
| 1 | TIS166-2549 appendix A figue A.1 | Gauge for checking impossibility of single-pole insertion of plugs (2-pins, 3-pins) | 2 |
| 2 | TIS166-2549 appendix A figue A.2 | Gauge for Testing the Contact of the Live Contact Tube (gauge A, gauge B, gauge C) | 3 |
| 3 | TIS166-2549 appendix A figue A.3 | Gauge for Testing the Contact of the Earthing Contact Before Live Contact | 1 |
| 4 | TIS166-2549 appendix A figue A.4 | Gauge for Testing Resilience Test and Contact Force of the Contact Tube (gauge C1, gauge C2, gauge C3) | 3 |
| 5 | TIS166-2549 appendix A figue A.5 | Gauge for Initial Testing Dimensions of the Socket-Outlet (2-pins, 3-pins) | 2 |
| 6 | TIS166-2549 appendix A figue A.6 | Gauge for Testing Maximum Withdrawal Force (2-pins, 3-pins) | 2 |
| 7 | TIS166-2549 appendix A figue A.7 | Gauge for Testing Minimum Withdrawal Force | 1 |
| 8 | TIS166-2549 appendix A figue A.8 | Gauge for Testing Earthing Contact is Made Before the Current-Carrying Contacts for Flat-Round Pin Socket-Outlet | 1 |
| 9 | TIS166-2549 appendix A figue A.9 | Gauge for Testing Maximum Withdrawal Force for Flat-Round Pin Socket-Outlet | 1 |
| 10 | TIS166-2549 appendix A figue A.10 | Gauge for Testing Minimum Withdrawal Force of Current-Carrying Pole for Flat-Round Pin Socket-Outlet | 1 |
Description
plug gauges, socket guages
Model
PG-TIS166
