UL Test Rod Probe
1. Introduction
The UL test rod probe is designed according to the standard of UL982 fig. 58.6, UL1278 Fig. 8.2, UL398 fig. 8.2 (PA170B), UL507 (PA170D) and UL749 fig.2. It's used for testing enamel coated wires.
2. Application
Transformers and Inductors
3. Parameter
Radius of Rod | Φ6.4mm |
Length of rod | 101.6mm |
Material | Nylon and stainless steel |
Standard | UL982 fig. 58.6, UL1278 Fig. 8.2, UL398 fig. 8.2 (PA170B), UL507 (PA170D) and UL749 fig.2 |

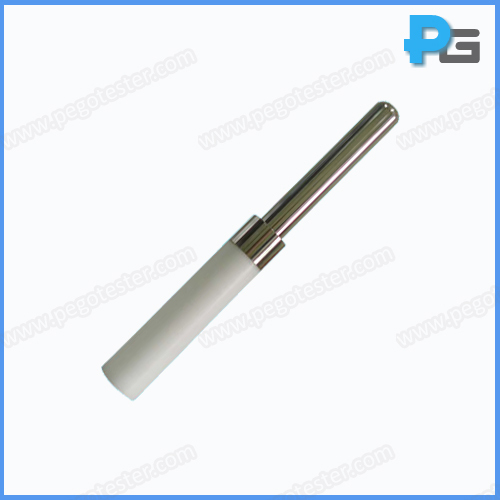

4. Figure
Description
The UL test rod probe is designed according to the standard of UL982 fig. 58.6, UL1278 Fig. 8.2, UL398 fig. 8.2 (PA170B), UL507 (PA170D) and UL749 fig.2.
Model
PG-PA145
