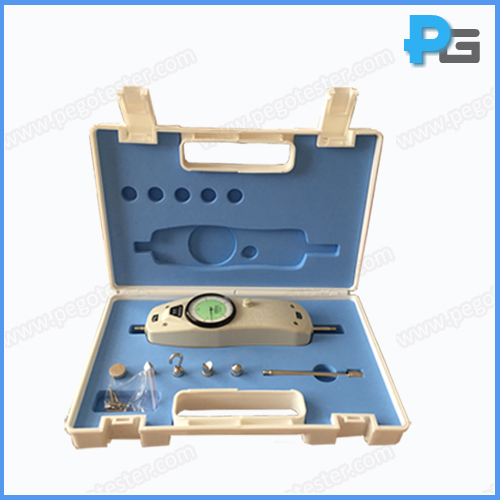

Analog Force Gauge

Analog Force Gauge

share
  • Detail
  • Parameters

Analog Force Gauge
1.Feature
●High resolution: 1/200 scaleplate
●Hand-held equipment with small volume
●Hand-held equipment with small volume
●High accuracy: 0.5%
●Two units to read the test result: N, Kgf


2.Parameters

Model

Max. Range

Min. Load & Accuracy

Distance Range

NK-10

10N     1Kgf

0.05 N    5gf

10mm

NK-20

20N     2Kgf

0.1 N    10gf

10mm

NK-30

30N     3Kgf

0.2 N    20gf

10mm

NK-50

50N     5Kgf

0.25 N    25gf

10mm

NK-100

100N    10Kgf

0.5 N    50gf

10mm

NK-200

200N    20Kgf

1.0 N    100gf

10mm

NK-300

300N    30Kgf

2.0N    200gf

10mm

NK-500

500N    50Kgf

2.5 N    250gf

10mm


Description
Analog force gauge has two units (N, Kgf) to read the test result
Model
NK-N
