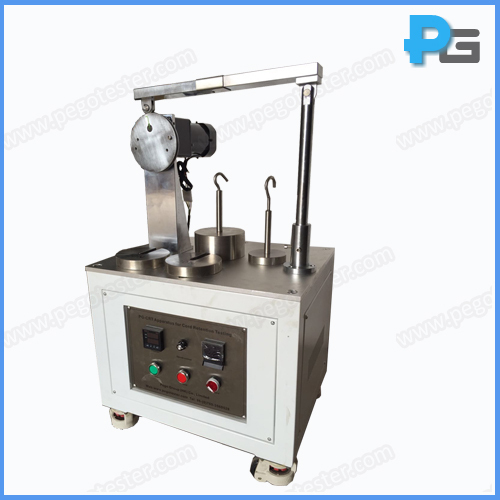

IEC60884-1 Figure 20 Apparatus For Cord Retention Testing

1.Introduction

This device is manufactured according to the IEC60884-1 clause 23.2 and figure 20. It is used to check the effectiveness of the retention of the cable by the cord anchorage. It’s applied to the removable plug, removable mobile socket, non-rewirable plug, rewirable mobile socket.


2, The according tensile force of the flexible cable:

The rated current of the flexible cable(A)

The rated voltage of the flexible cable(V)

The tensile force (N)

2.5

—

50

2.5～16

≤250

60

2.5～16

>250

80

>16

—

100


3. Technical parameters:

Power Supply

220V 50Hz

Number of testing

1~9999( it is adjustable. 100 is by default)

Rate of testing

60 times/min

Weight

10N*1, 60N*1, 20N*2

Standard

IEC60884 Figure 20, VDE0620


Description
This device is manufactured according to the IEC60884-1 clause 23.2 figure 20
Model
PG-CRT
