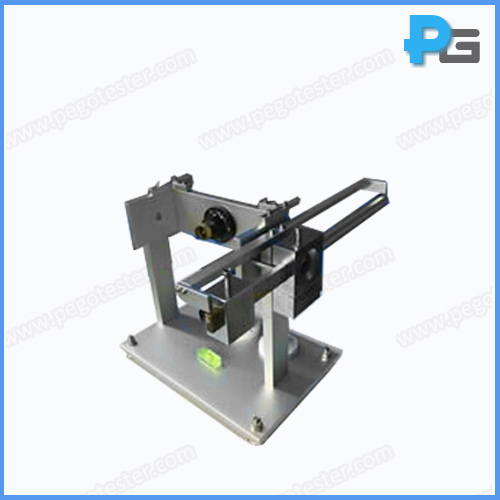

Bending Moment Test Device for Semi-Luminaires
1. Introduction
The test device is designed to meet the test requirement of IEC60598-1 clause 4.14.2, it is applied for bending moment test for semi-luminaires. For the semi-luminaires intended for connection to Edison screw or bayonet lampholders the mass and effective bending moment shall not exceed the maximum value.
2. Parameter
Control mode | Manual control | |
Test station | 1 | |
Test stand | knife-edge fulcrum principle, with good sensitivity | |
Weights | 6N*1, 10N*1 | |
Beam scale | 0-25cm | |
Lampholder jigs | E14, E27, B22 | |
Force moment adjustment | the weights work with 0-25cm beam scale to produce the corresponding force moment: 6N: 0.006-1.5Nm, 10N: 0.1-2.5Nm | |
Maximum mass of luminaire | 1.8KG (E14 amd B15 lampholders) | 2KG (E27 and B22 lampholders) |
Maximum bending moment | 0.9Nm | 1.8Nm |
Dimension | 300mm*50mm*300mm (L*D*H) | |
