Blunt Probe
1. Introduction

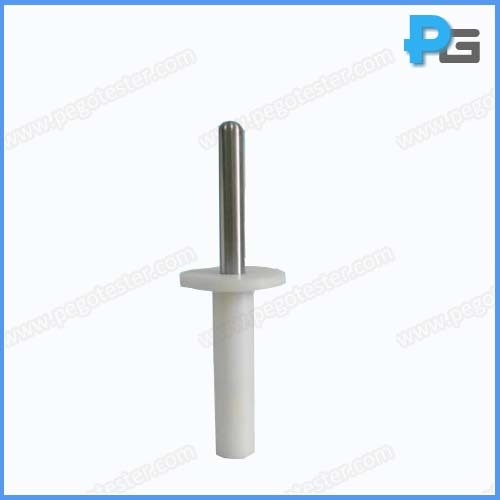

The blunt probe is designed according to IEC60950 figure 2C, IEC60065 figure B1, IEC62151 figure 3, UL6500 figure B.1, IEC62368-1 figure V.3. It is applied to check if the exposed parts of TNT circuits of information technology equipment has adequate protection.
2. Specification
Length of the probe | 80mm±0.2mm |
Radius of probe | R6＋0.05mm |
Diameter of probe | φ12＋0.05mm |
Diameter of stop | φ50mm±0.2mm |
Material | Insulation material (probe), nylon (handle) |
Description
The blunt probe is designed according to IEC60950 figure 2C
Model
PG-TPBL
