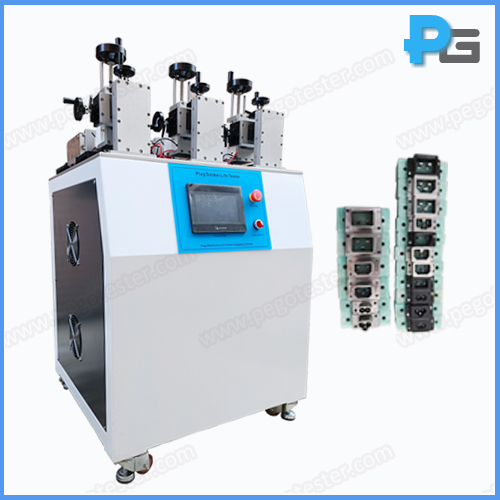

Breaking Capacity and Normal Operation Testing Machine for Appliance Coupler

1.Introduction

Breaking capacity and normal operation testing machine designs to test the connector and appliance outlet as per IEC60320-1: 2015 clauses 19 and 20. Counterpart appliance inlet or plug connector designed according to relavant standard sheet, is recommended apply to test standardized type of connector and and appliance outlet.

The number of test station can   be customized as per user's requirement (that depends on how many specimens that will be tested at one time). The endurance test apparatus uses servo motor to drive the slide rail assembly with clamps to do reciprocating rectilinear movement, thereby completing the insertion and extraction of connector / appliance outlet and appliance inlet /plug connector.

The test apparatus adopts workbench design, and equip with 4 casters to make the machine moves easily.


2. Specification

Control unit

PLC+7 inch touch screen

Test stations

3

Test driver

Servo motors (3 working stations drives independently)

Moving structure

Ball screw rod equip with linear slide drive

Test speed

1-80mm/s (independently settable for each working station)

Test method

independently or simultaneously (one station is abnormally stop, the other station can works normally)

Test time (power on-off time)

0-99s (settable)

Number of strokes

1-999999 (Each station counts independently, and the machine automatically stops when the count reaches the set value)

Mounting fixture

1). X,Y, Z axis adjustable.

2). The fixture seat can be moved up and down, right and left, forward and backward to adapt to samples with different shapes.

Alarming function

1). independently detect whether there is current in the test circuit, and intelligently detects soldering deadness, non-conductivity, and long-term energization. Memorize the number of soldering deadness and non-conductive times and make a buzzer alarm prompt.

2). When a test failure occurs, the machine can detect and promptly cut off the load power.

3). Each work station has a short circuit protection device

Test items

Breaking capacity test for connector and appliance outlet

Normal operation test for connector and appliance outlet

Dimension

L1200mm*W200mm*H1500mm

Working Power

AC220V/50Hz





Description
Breaking capacity and normal operation testing machine designs to meet the test requirements of IEC60320-1:2015 clause 19 and clause 20, for testing connector and appliance outlet.
