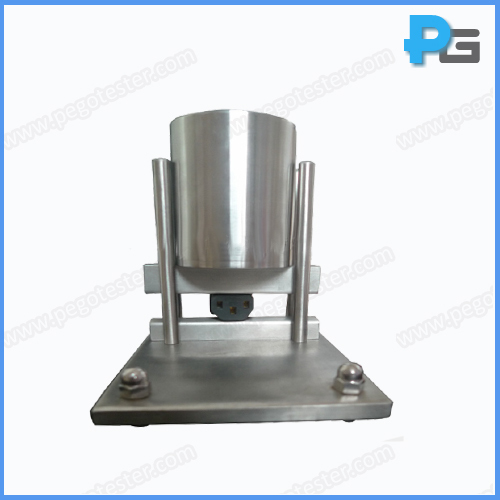

Apparatus for Compression Test for the Verification of Resistance

1. Introduction

Apparatus for compression test is designed according to IEC60884-1 clause 25.4 and figure 38, it is applied to verification the compression resistance performance in heating of cover of moveable socket-outlet, electrical accessories and surface type mounting box. The test apparatus shall work with oven. 20N force is applied to specimen via the jaws for 1 hour, and the specimen can not be damage.


2. Parameter

Configuration

Moving jaw and fixed jaw (60mmx15mm), guide and weights

Jaw

R25mm, Cylindrical sharp, round corner: R2.5mm

Weight

20N

Test temperature

80℃±2℃

Test time

25±5°for 1 min (cover of moveable socket-outlet), 80±2°for 1 hour (electrical accessories and surface-type mounting box)



3. Figure



Description
Apparatus for compression test is designed according to IEC60884-1 clause 25.4 and figure 38
Model
PG-CTA
