Current-Carrying Hose Crushing Test Apparatus

1. Introduction

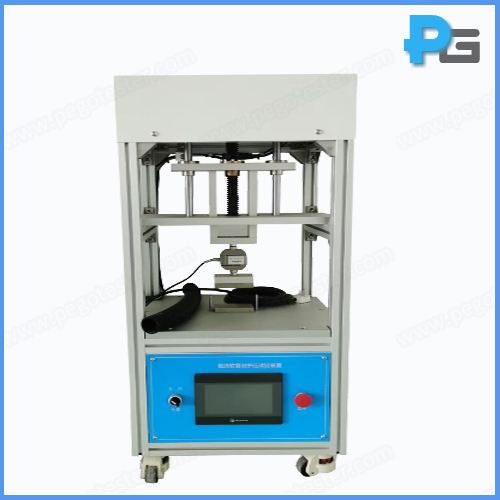

The current-carrying hose test apparatus is designed to meet the test requirements of IEC60335-2-2 clause 21.101, for verifying the current-carrying hose resistance to crushing.

The hose is placed between two parallel steel plates, the axis of the hose is positioned at right angles to the longer sides of the plates. The plates are placed at a distance of approximately 350mm from one end of the hose. The steel plates are pressed together at a rate of 50mm/min±5mm/min until the applied force is 1.5KN. The force is then released and the electric strength test is carried out.


2. Specification

Control units

PLC+touch screen

Drive mode

Servo gear motor

Crushing pressure

1.5KN max.

Pressurization speed

50mm/min±5mm/min

Steel plates

length 100, width 50mm

the edges of the longer sides rounded with a radius of 1mm

Pressure accuracy

1% (force sensor)

Working power

AC 220V/50Hz (φ1)


Description
The current-carrying hose test apparatus is designed to meet the test requirements of IEC60335-2-2 clause 21.101, for verifying the current-carrying hose resistance to crushing.
Model
PG-CHC
