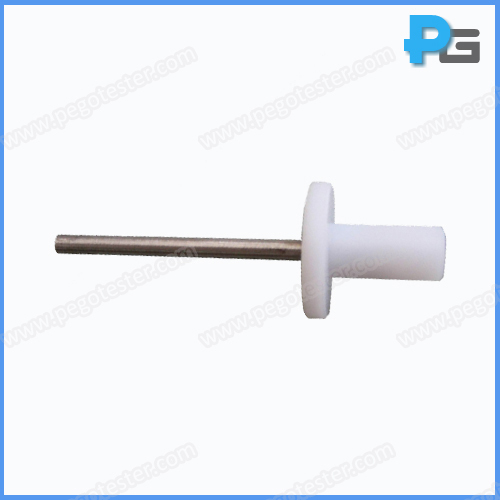

Test Probe 12 ( Cylindrical Long Taper Test Pin )

1. Introduction:

Test probe 12 (cylindrical long taper test pin: Φ4-length 50 ) is designed according to IEC61032 figure 8. This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.


2. Specification:

diameter of test probe

4mm

length of test probe

25mm

diameter of baffle

25mm

thickness of baffle

4mm

Material

Insulating material (handle), metal (test probe)


Description
Test Probe 12 is designed according to IEC61032 figure 8.
Model
PG-TP12
