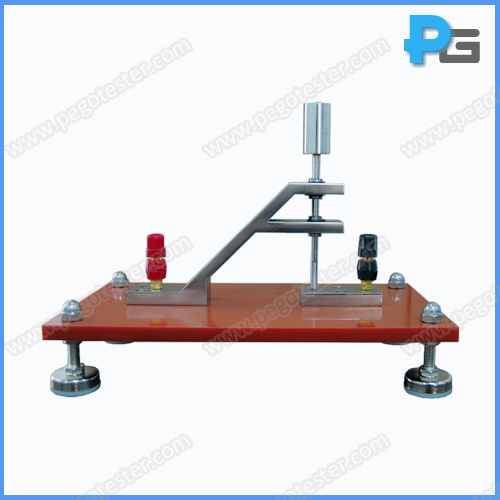

IEC60065 Dielectric Strength Test Instrument for Electrical safety testing
1. Introduction
The dielectric strength test instrument can meet the test requirements of IEC60065 and UL1310, for testing the dielectric strength of thin-layer insulation material. The device should work with a withstand voltage tester.
2. Parameter
Standards | IEC60065 | UL1310 |
Mass of the moveable electrode | 100g±1g | 50g±1g |
Diameter of metal pin | Φ5mm±0.1mm | Φ6.4mm±0.1mm |
Diameter of support pin | Φ5mm±0.1mm | Φ6.4mm±0.1mm |
edges rounded radius | 0.5mm | 0.8mm |
Material of metal pin and support pin | Stainless steel/brass | |
Description
The equipment is designed according to IEC60065 and UL1310
Model
PG-DS12
