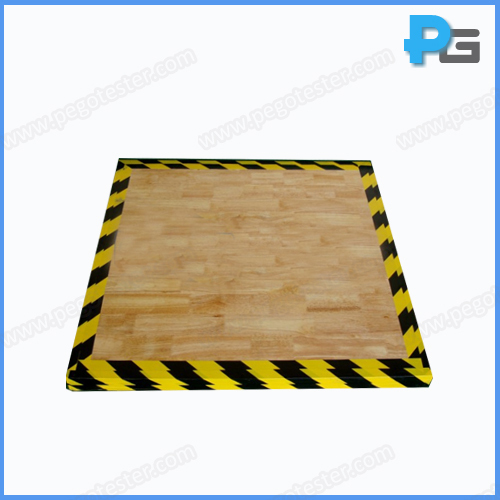

Drop Impact Test Hardwood Surface

1. Introduction

The hardwood surfaces can meet the requirement of GB4943.1-2011 clause 4.2.6, it is applied to perform the drop impact test to detect the drop resistance performance of the sample. The hardwood surface shall rest on a concrete floor or an equivalent non-resilient floor during the test.


2. Parameter

Item

GB hardwood surface

UL Hardwood surface

Size

600*600*52m (customized)

600*600*63mm (customized)

First Layer

Oak board*1 with thickness 13mm above

Oak board*1 with thickness 25mm above

Second Layer

Plywood*2 with thickness 19~20mm

Plywood*2 with thickness 19~20mm

structure

The oak board is installed on two layers of plywood to ensure that the overall horizontal plane is flat and there is no gap in the fastening

The oak board is installed on two layers of plywood to ensure that the overall horizontal plane is flat and there is no gap in the fastening

Standard

GB4943.1-2011

UL1993


Description
The hardwood surfaces can meet the requirement of GB4943.1-2011 clause 4.2.6
Model
PG-HWS
