Electrostatic Discharge Generator

1. Introduction

ESD simulator (ESD gun) is completely meet the requirements of IEC61000-4-2 and GB/T17626.2. The ESD generator is designed for the assessment of electrical and electronic equipment to withstand ESD performance, widely apply to the fields of industries of control equipment, household appliance, chemical electronics, communication electronics, components, auto cotnrol equipment and etc..

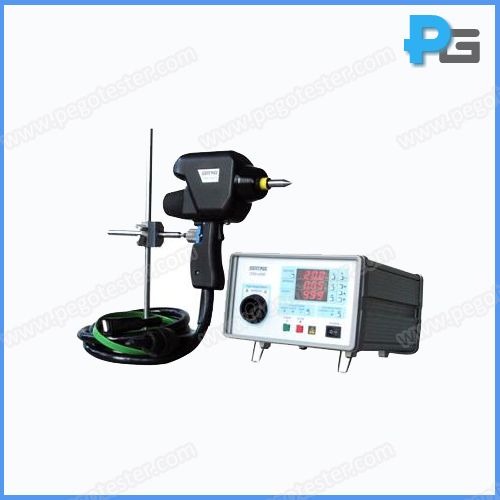

The ESD generator is consisted by ESD generator, ESD gun and two electrodes (cone sharp electrode is for contact discharge, and ball sharp electrode is for air discharge), the parameters of rising time, peak current and current at 30ns and 60ns are strictly meet the requirement of IEC6100-4-2.


2. Parameters

Model

ESD-2005

ESD-2000

Output voltage

0.5～30kV±3％

0.1～20kV±3％

Polarity

Positive, negative

Trigging mode

SINGLE, COUNT, 20PPS, *

Discharge mode

Air discharge, contact discharge

Discharge interval

0.1～9.9s (0.05S @ 20pps mode)

Numbers of discharge

0～999

Energy storage capacitance

150pF±10％

Discharge resistor:

330Ω±10％

discharge electrode

Conical contact discharge electrode and spherical air discharge electrode

Air discharge voltage keep time

More than 5S

Working environment

Ambient temperature:10℃～35℃    humidity:30％～60％

Power

Single AC85～265V，50／60Hz

Dimension and weight

250×210×130mm（D×W×H）/4kg


Description
ESD generator is completely meet the requirements of IEC61000-4-2.
Model
ESD-2000
