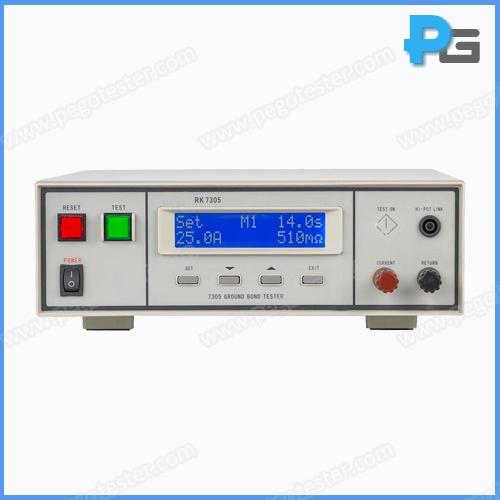

Ground Resistance Tester

1. Introduction

Ground Resistance tester is applied to test the ground resistance between conductive parts and earth terminal. It is completely meet the requirements of GB, IEC, ISO, BS, UL, JIS and other standards. Ground resistance tester is mainly used in all kinds of motor, electronic appliance and etc.


2. Specification

Model

RK2678XM

Test Current

AC:5~32A (5~70A)

Current Resolution

±5%

Resistance range

10.0-200mΩ (32A)/200~600mΩ (10A)

Resistance resolution

±5%+3digit

Time

2~999.9s

Working power

220V, 50/60Hz

Alarming function

yes

Description
Ground resistance tester, Earth ground resistance tester,earth resistance tester
Model
RK2678XM
