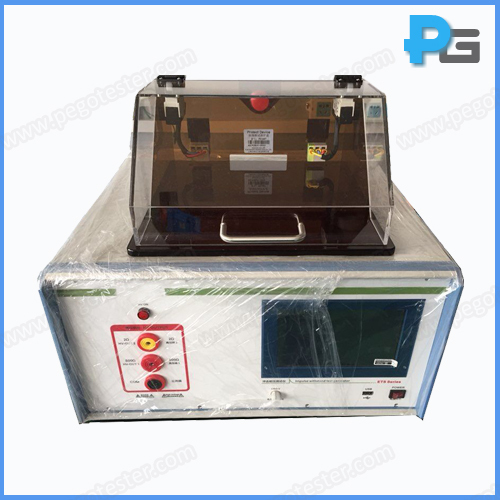

IEC60065 High Voltage Surge Generator

1. Introduction

The high voltage surge generator is designed to meet the test requirements of IEC60065 clause 10.1 and 14.1, figure 5a and 5b.


2. Parameter

Control unitLCD touch screen
Output voltage (open-circuit)0.5KV~15KV (customizable)
Number of test times1-9999
Surge interval3~999s
Working conditions15℃~35℃ (temperature), 10%~75% (R.H.)
Working power220V±10% (AC), 50/60Hz
DimensionW470mm*H260mm*D500mm
Weight30KG
Optional accessoriesprotection cover


3. Principle and waveform

Part of surge waveform equivalent circuit


Description
Hiigh voltage surge generator is designed according to IEC60065 clause 10.1 and 14.1, figure 5a and 5b.
Model
LSG-255N
