Impulse Voltage Generator
1. Introduction
The imuplse voltage generator also be called as high voltage surge generator. This equipment can meet the test requirements of IEC60225-5, IEC60065, IEC60950, IEC60335-1, GB14711 and etc.. The Impulse test is a destructive test to assess the insulating performace of electrical and electronic appliance, like small power motor, household appliance, relay and etc.. The generator can generate a no-load wave shape conresponding to the 1.2/50ms standard impulse specified in IEC 61180-1. The test voltage and output impedance can be customized as user's test requirements.
2. Technical Parameters
| Contril unit | LCD touch screen |
| Output voltage (Open Circuit) | 0.5KV~12KV ±5% (customizable) |
| Frontier time | 1.2μs ±30% |
| Half-value time | 50μs ±20% |
| Output polarity | positive, negative, positive/negative automatically |
| Output impedance | 2Ω,500Ω±10%; 12Ω,500Ω±10% (customizable) |
| Number of test times | 1~9999 |
| Surge interval | 3~999s |
| Working conditions | 15℃~35℃ (temperature), 10%~75% (humidity) |
| Working power | AC220V±10%, 50/60Hz |
| Dimension | W470mm*H260mm*D500mm |
| Weight | 35kg |
Description

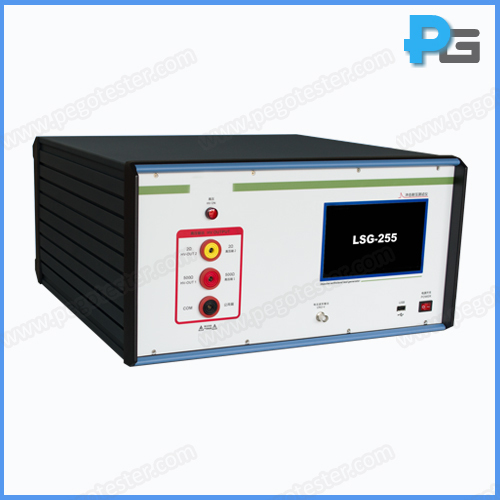

The impulse voltage generator has a no-load wave shape corresponding to the 1.2/50μs standard impulse specified in IEC 61180-1.
Model
LSG-255
