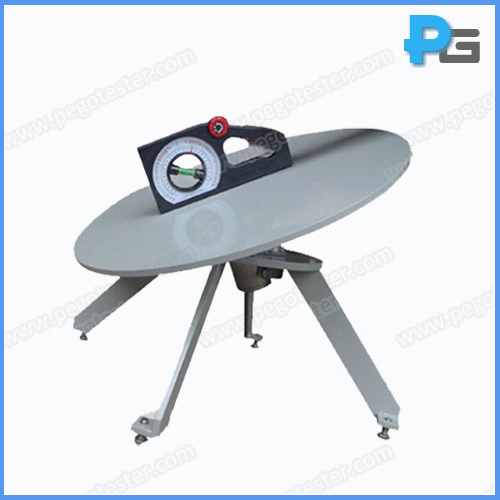

IEC60335-1 Electrical Stability Tester/Inclined Plane Device

1. Introduction

Inclined plane device is designed to meet the test requirements of IEC60335-1 clause 20.1, IEC60065 clause 19.2 and IEC60950 clause 4.1.1, for checking the stability performance of the appliances intended to be used on a surface.

This device consists of a surface and an angle adjusting device. The inclination angle can be adjusted at the range of 0⁰ to 30⁰. The rotation speed is 1rpm per min. Place the appliance in its intended position of use on a plance, inclinded at an angle of 10⁰ or 15⁰ to the horizontal, and then rotate slowly through an angle of 360⁰   about ist normal vertical axis. During the test, the appliance shall not overtun.

2. Specification
