Insulation Resistance Tester

1. Introduction

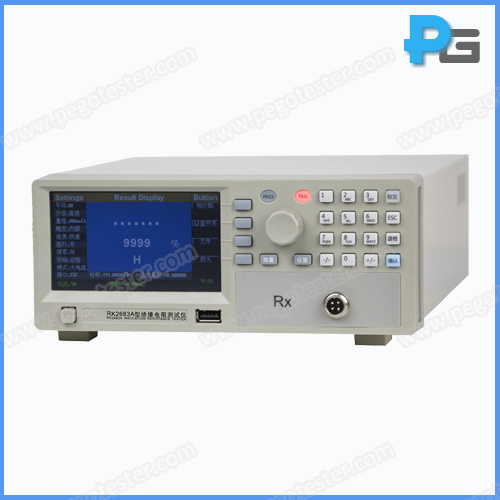

Insulation resistance tester is an equipment to test the insulation performance of household appliance, lighting equipment and etc.. It has the features of fast, stable, convenient and judgment. RK2683 series are designed for labs, RK2681 series are designed for site test.

2. Parameter

Model

RK2683B

RK2683A

RK2681

RK2681A

Test range

10KΩ~5TΩ

10KΩ~10TΩ

100KΩ~5TΩ

100KΩ~10TΩ

Accuracy

R<1GΩ:0.5%   R≥10Ω:0.1%   R≥10GΩ:3%

R<10GΩ:±3%   R≥10GΩ:±5%   R≥1TΩ:±10%

Test voltage

0.1-500V

0.1-1000V

10V/25V/50V/100V/250V/500V

10V/50V/100V/250V/500V/1000V

Accuracy of voltage

0.25%+0.2V(<10V)   0.25%+0.1V(>10V)

±2%

Control mode

ARM micro-processor and artificial circuit

artificial circuit

Sorting function

Pass/not pass, setting the sorting range

Pass/not pass

Display

4.3 TFT LCD display

pointer

Connect port

RS-232C, PLC, USB

None

Working power

220V±10%,50Hz±5%

220V±10%,50Hz±5%

Power consumption

<40VA

<30VA

Dimension(mm)

330*220*198

375*355*140

Accessories

Power cable,test cable, RS232 and USB cable and etc.

Power cable, test cable


Description
Insulation Resistance Tester, Insulation Resistance megger
Model
RK2683
