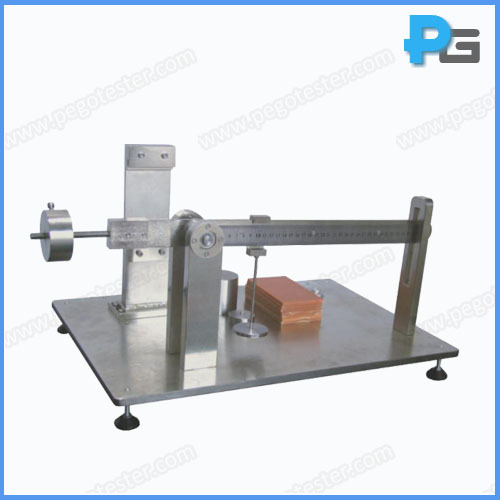

EN 60238 figure 6 Lamp Holder Torque Apparatus
1. Introduction
The torque apparatus is designed according to IEC60238:2016 clause 16.2 to 16.4 and figure 6. It is applied to check the mechanical strength of the outer shell, the screw shell and the dome by screwing a test cap into the specimen. The test caps (E14A, E14B, E27 and E40) designed to IEC60238 figure 13, figure 14 and figure 15.
2. Parameter
Structure | 1). The overall is made of Steel chrome plated and connected by screws 2). Base plate size: 360mm*260mm*12mm |
Test station | 1 |
Test time | 1min (user prepare a stopwatch) |
Weights | 0.5Nm, 1.2Nm, 2Nm, 4Nm |
Force arm range | 60mm-300mm |
Mounting plate | The size of mounting plate for lampholder can be customized |
Test caps | E14A, E14B, E27, E40 (optional, need to be purchased separately) |
