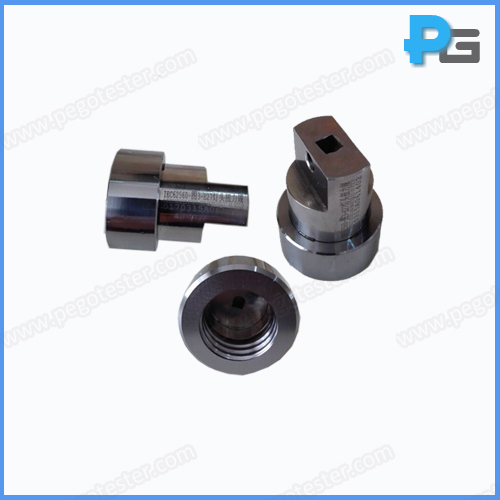

Torque Gauges E12 / E14 / E26 (d) / E27 for Torsion Resistance Test of Unsed Lamps
Torque gauges E12 / E14 / E26 (d) / E27 are for torsion resistance test of Unsed Lamps is designed according to IEC60432-1 figure C.2 and IEC60560-2 figure 3. The torque gauges should work with torque screwdriver to apply torque force. The gauges can come with calibration certificates issued by an ISO17025 authorized lab.
Dimension | E12 | E14 | E17 | E26 and E26d | E27 | Tolerance |
C | 15.27 | 20.0 | 20.0 | 32.0 | 32.0 | Min. |
K | 9.0 | 11.5 | 10.0 | 11.0 | 13.5 | 0.0/-0.3 |
O | 9.5 | 12.0 | 14.0 | 23.0 | 23.0 | +0.1/-0.1 |
S | 4.0 | 7.0 | 8.0 | 12.0 | 12.0 | Min. |
d | 11.89 | 13.89 | 16.64 | 26.492 | 26.45 | -0.1/0.0 |
d1 | 10.62 | 12.29 | 15.27 | 24.816 | 24.26 | +0.1/0.0 |
p | 2.540 | 2.822 | 2.822 | 3.629 | 3.629 | - |
r | 0.792 | 0.822 | 0.897 | 1.191 | 1.025 | - |
Description
E12/E14/E17/E26/E26d/E27 Holders Torque Gauge is designed according to IEC60432-1 figure C.2 and IEC60560-2 figure 3
Model
EHTG
