Leakage Current Tester

1. Introdution

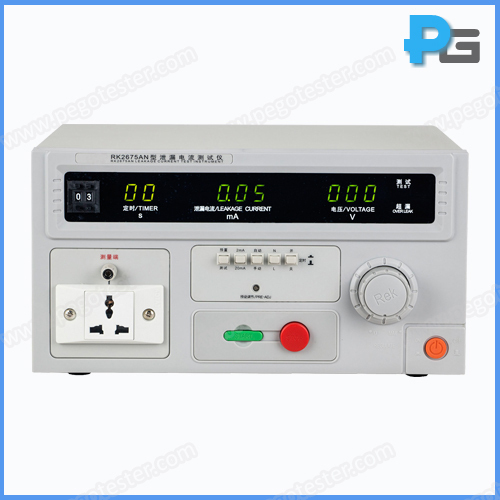

RK2675 series leakage current tester is applied to test the leakage current caused by power supply, it's an important index to judge the quality of electronic appliance. Leakage current tester is widely used in household appliance, compressor, motor, cable and etc. RK2675 series tester has the alarming function, and the test time and value can be preset.


2. Parameters:

Model

RK2675S

RK2675A

RK2675B

RK2675C

RK2675D

RK2675E

RK2675W

Output voltage

AC:50-430V

0-250V

Leakage current

AC: 0-2mA

2mA-20mA

AC: 0.01mA-20mA

Resolution of current

0.01mA

Accuracy of current

±3%

Transformer power

3kVA/6KVA

500VA

1000VA

2000VA

3000VA

5000VA

NONE

Test time

1-999s

Alarming set

Yes

Display

LED digital
display(time/leakage current/voltage)

Power supply

220V±10%, 50Hz±5%)

Condition

0-40 degrees, <75%RH

Description
Leakage current tester, current tester
Model
RK2675
