IEC60335-1 and IEC60065 Plug Pins Fixation Verifying Test Apparatus (Pull Force and Torque Force Tests)
1. Introduction

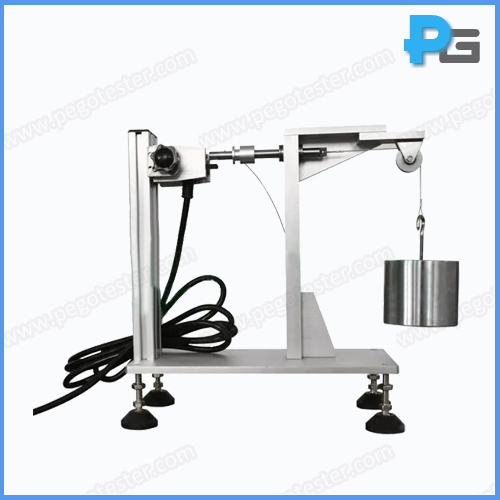

The plug pins fixation verifying test apparatus is designed according to IEC60335-1 clause 22.3 and IEC60065 clause 15.4.3 (b and c), it can perform both torque test and pull force test to verify the firmness of plug pins. The test apparatus should work with a heating cabinet when perform the pull force test.
2. Parameters
Number of test station | 1 |
Weights for pull force test | 40N*1，20N*1，10N*1，4N*1 |
Torque test | 0.4N.m (Realized by 50N weight and R8mm torque wheel) |
Test time | 1min (manual control) |
Configuration | Equip with socket-outlet (user provide the standard sheet of socket) |
Dimension and weight | W350mm*H250mm*D2500mm, 15KG |
Working condition | 0-40℃，30%-90%R.H. |
IEC60065 Table 17 Pull force on pins
Ratings of the equivalent plug type | Number of poles | Pull force (N) |
≥10A, 130/250V | 2 3 | 40 50 |
>10≤16A, 130/250V | 2 3 | 50 54 |
>10≤16A, 440V | 3 >3 | 54 70 |
