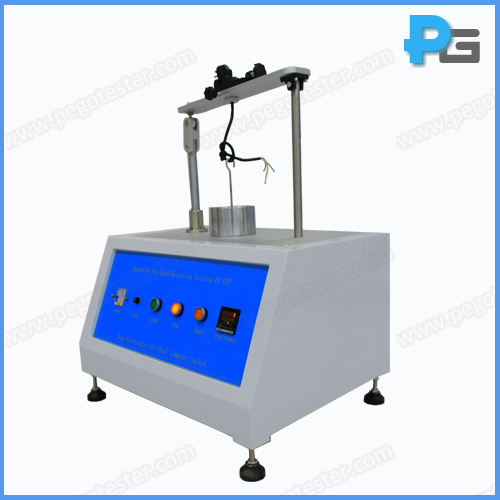

Pull Test Apparatus for Cable Anchorage of Connectors and Plug Connectors

1.Introduction

Pull test apparatus is designd to meet the test requirements of IEC60320-1 clause 22.2.3 and figure 6, for testing the cable anchorage of the connectors and plug connectors relieve from strain and twist.


2. Test Procedure

Fix the test sample in the test apparatus, so that the axis of the cord is vertical where it enters the connector / plug connector. The cord is then subjected 100 times to a pull of 50N for connectors / plug connectors having a rated current not exceeding 2.5A, and 60N for others. The pulls are applied without jerks, each time for 1s.


3. Specification

Power Supply

AC 220V±10%, 50Hz/60Hz

Number of testing

1~9999( x1x10x100)

Weight

10N*1, 60N*1, 20N*2 (Configured to test 40N, 50N, 60N, 80N, 100N weights)

Material: SUS304 stainless steel

Rate of testing

60 times/min

Bushing

6, 8, 10, 12, 16, 20mm each one piece

Standard

IEC60320-1 figure 6, IEC60884-1 figure 20, VDE0620





Description
pull test apparatus designs to meet the test requirements of IEC60320-1 clause 22.2.3 and figure 6, for testing the cord (cable) anchorage of connectors / plug connectors relieve from strain and twist
Model
PG-CRT
