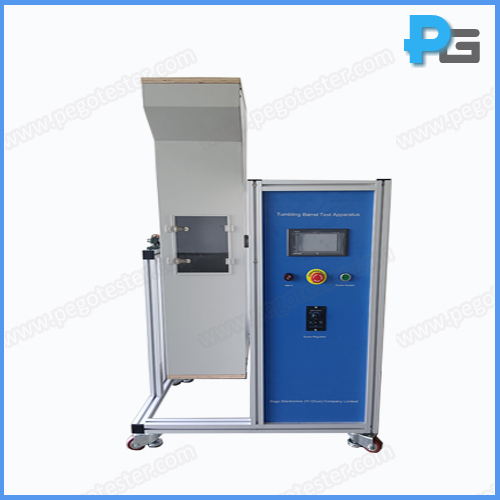

Rotation Barrel for Free Fall Test
1. Introduction
Rotation barrel designs to meet the test requirements of IEC60320-1 clause 23.2 for repeat free fall test. The test is to check the mechanical strength of connectors and plug connectors, the test sample shall be subjected 500 or 100 repeat free falls. After the test, the test samples shall show no damage and no part shall have become detached or loosened which may influence the electrical safety.
2. Specification
Control units | Button control+meter/touch screen |
Test station | 1 |
Rotating speed | 5R/min |
Rate of fall | 10 falls/min |
Falling height | 500mm or 1000mm optional |
Number of falls | 0-999999 (settable) Complete the prescribed number of falls, the equipment will auto stop |
Configuration | Two-end steel sheet thickness: 3mm Body steel sheet thickness: 1.5mm Backed hardwood: plywood with thickness 10-19mm Bevel: backed by 2 wedge-shaped chip-resistant rubber with a hardness of 80±20IRHD as per ISO48 |
Sizes | Width: 220mm Other sizes as below:
|
