1. Introduction

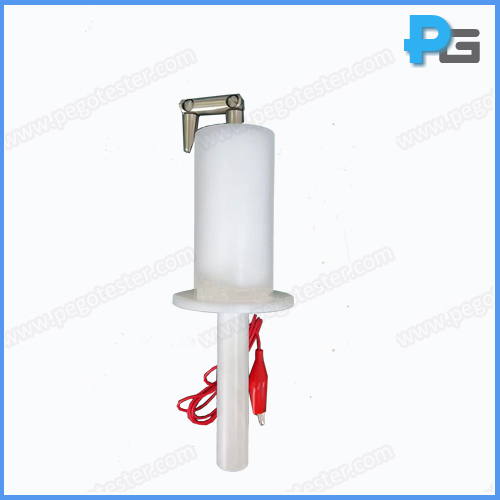

Similar test probe is designed to meet the test requirements of IEC60335-1 clause 20.2, the finger part is same as the test probe B of IEC61032, but having a circular stop face with a diameter of 50mm. The recommend force applied is 5N. The finger part has two active joints that can bend in 90 degrees and made of stainless steel, the handle made of insulating material can customized with terminals or M6 threaded hole to work with force gauge to apply force.
2. Specification
Model | PG-TPB-1 |
Jointed point size 1 | 30±0.2 |
Jointed point size 2 | 60±0.2 |
Length of finger | 80±0.2 |
Fingertip to baffle size | 180±0.2 |
Fingertip taper fillet | S4±0.05 |
Diameter of finger | Ф12 0 -0.05 |
Diameter of baffle | Ф75±0.2 |
Thickness of baffle | 5±0.5 |
A-A section diameter | Ф50 |
A-A section width | - |
Thruster | 0N, 5N optional |
Standard | IEC60335-1 |
