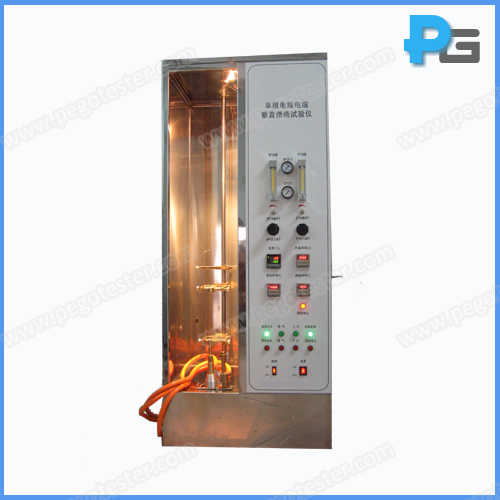

Single Wire Vertical Flammability Test Apparatus

1. Introduction

Single wire vertical flammability test apparatus is designed according to IEC60332-11. It adopts bunsen burner and certain combustion gas, the fire hazard is evaluated by burning rate, after glow time, after flame time and damage length of the specimen. The test apparatus is applied to do the single wire flammability test for lighting appliance, household appliance, motor and etc..


2. Specification

Burner

Φ12mm ± 0.5mm (inner diameter) and Φ9.5mm ± 0.5mm (inner diameter) bunsen burners

Burning angle

450

Flame height

20mm ± 2mm to 190 ± 1mm adjustable

Flame time

0-999.9s± 0.1s adjustable

After flame time

0-999.9s± 0.1s (auto record, manual control)

Combustion gas

95% propane

Flow pressure

flowmeter and voltmeter

Temperature range

0-10000C

Flame temperature required

heat up from 1000C±50C to 7000C±30C   within the time of 45s±5s

Thermocouple

Φ0.5mm K type thermocouple

Test period

Auto control

Material

stainless steel

Working dimension

300mm*450mm81200mm (0.16CBM)

Outer dimension

600mm*450mm*1450mm (W*D*H)

Description
The Wire Vertical Flame Tester is designed according to IEC60332-1 standard.
Model
PG-DZ
