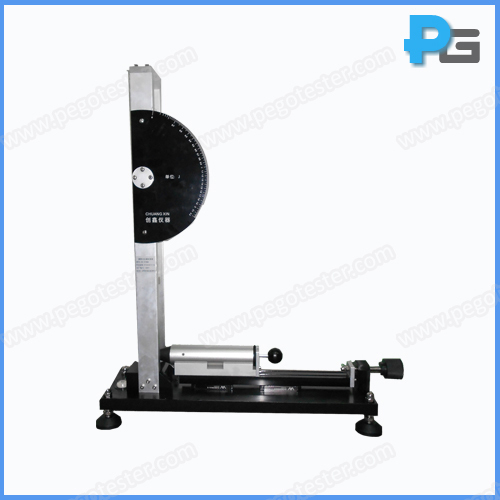

Spring Hammer Calibration Device

1. Introduction

The spring hammer calibration device is designed according to GB2423.44 Annex A, GB2423.55 Annex B, IEC60068-2-63 and IEC60068-2-75 standard Annex B. It’s applied to check the impact energy accuracy of spring hammer calibration device.

The spring hammer calibration device is applied to correct the 0.14J to 2J spring hammers, the accuracy can reach 0.01J, and it is made of high quality steel.


2. Parameters

Accuracy

0.01J

Repeated Accuracy

±0.01J

Max measuring range

0-2J

Outer diameter of guide groove

51mm

Energy loss of pendulum rod

<0.002J

Trigger stroke

>30mm


Description
The calibration device is designed according to GB2423.44 Annex A, GB2423.55 Annex B, IEC60068-2-63 and IEC60068-2-75 standard Annex B.
Model
PG-SHC
