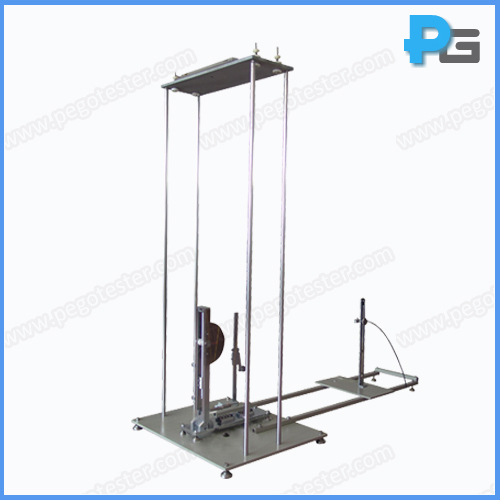

Spring Hammer Calibration Device Calibrator

1. Introduction

The spring hammer calibration device calibrator is designed according to IEC60068-2-75 Annex B.3 and figure B.5 for checking the impact energy accuracy of spring hammer calibration device. The calibation is made with an impact energy of 1J, which is achieved with a height of fall of 408±1mm, with a calibation striking element of 250g.


2. Parameter

Accuracy

0.01J

Repeated Accuracy

±0.01J

Max measuring range

0-2J

Calibration striking element

250g

Reference point

An impact energy of 1J is achieved with a height of 408±1mm

Pendulum rope center distance

2m


Description
The spring hammer calibration device calibrator is designed according to IEC60068-2-75 Annex B.3 and figure B.5
Model
PG-SHCC
