Static Flexibility Test Apparatus

1. Introduction

The static flexibility test apparatus is designed to meet the test requirements of IEC60227-2 clause 3.5 and GB/T5023.2 clause 3.5 for testing the flexibility of cables with conductor cross-sectional areas ≥2.5mm2.


2. Parameter

Working Power

AC220V/50Hz

Control units

Meter+buttons

Height from ground

1.5m above

Clamp A

Fixed end

Clamp B

Moveable end

Move direction

horizontal

Moveable distance

≤1.0m

Minimum space

0.2m

Cable rotate

Manually

Description

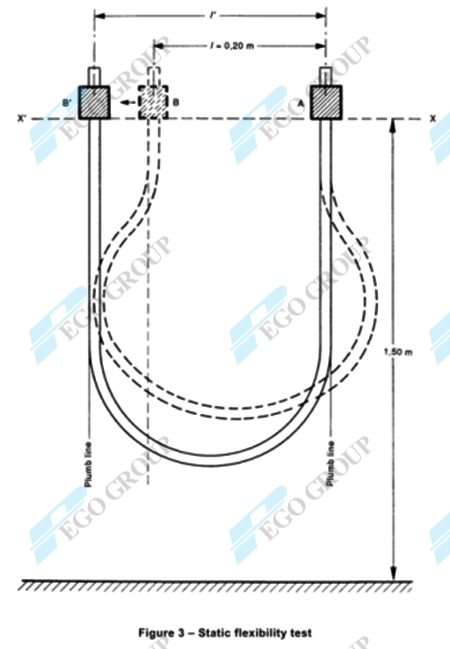

The static flexibility test apparatus is designed to meet the test requirements of IEC60227-2  figure 3
Model
PG-SFA
