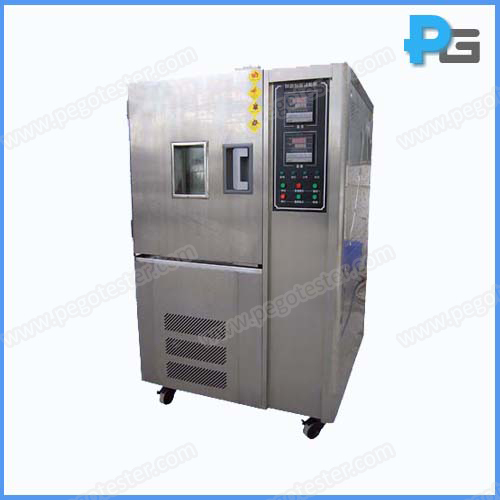

High Low Temperature and Humidity Chamber

1. Introduction:

High-low temperature and humidity chamber is a kind of environment test chamber, designed according to IEC60068-2-1, IEC60068-2-2 and IEC60068-2-3. It can accurately simulate the conditions of low temperature, high temperature,low temperature & humidity and high temperature & humidity. It is applied to the industries of electronic, battery, plastic, food, paper, car, LED lamps and so on.

2. Features:

1.The chamber is produced by SUS304 steel with nice looking and high quality, and it is easy to operation.

2.The chamber has a big inspection window, and with Philips energy-saving fluorescent inside, user can observe the test items easily.

3.Adopt the TEMI300 temperature controller made by Korea, LCD display in English. Temperature and humidity can be control simultaneously, and it can be communicated with PC via RS-232. Accuracy: ±0.3℃+1digit,±1%R.H+1digit.

4.Humidifying pipes circuit is separation from control electronic circuit. Keep the humidifying pipes separates from power, controller and electric circuit can improve the safety during the operation.

5.Advance freeze and control system.

6.Self-protection function: overheating, compressor pressure, overload, short circuit protection.

3. Parameters:
